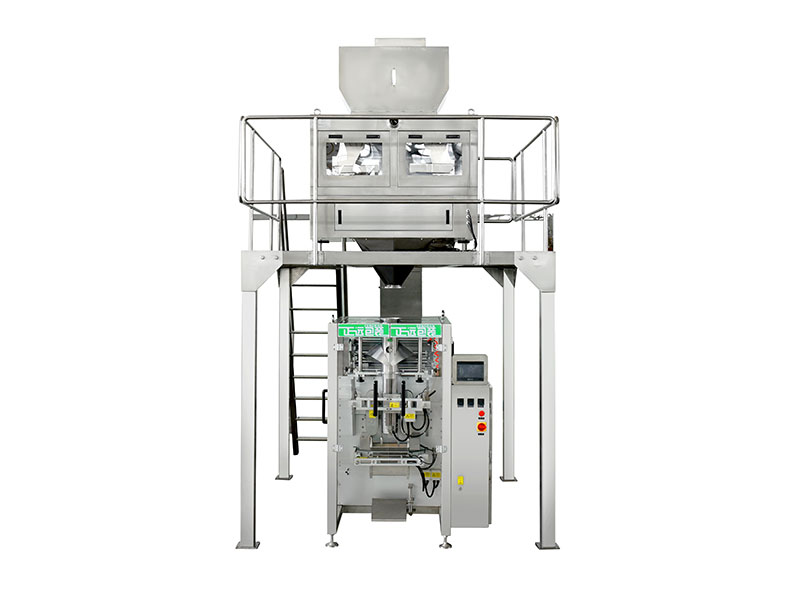

VFFS Bagging Machine with Linear Scale

VFFS Bagging Machine with Linear Scale

Suitable for free flow powdery materials such as detergent powder, sugar, salt, and granule products like coffee beans, rice, seeds, etc.

  • Item NO.:

    VFS5000B
  • Brand:

    zengran
  • Max speed:

    20-60bags/min
  • Bag size:

    Max roll film width 520mm
Products Details

The complete system include:

Z-type bucket elevator

4 head linear scale

Supporting platform

VFFS series vertical form fill seal machine

Output conveyor


Features:

Imported PLC and HMI control system, full Chinese/English touch screen operating system, clear display of the working status and instructions.

High precision servo film pulling system, smooth movement of film, with eyemark sensor as well as encoder automatic positioning and tracking system, accurate cutting of bag length.

Intelligent digital temperature control system, temperature controlled stably, with teeth-shaped sealer ensure the sealing integrity.

Automatic fault alarm display function, machine will automatically alarm or shutdown when sealing temperature drop, film run out, no ribbon, no material, servo failure, no film tracking signal, protection door opened, etc. To help solving problems immediately

Integrated functions of all packaging process including automatically code printing, weighing, filling, bagging, cutting and counting.



Optional auxiliary equipment:

Check weigher

Metal detector

Rotary table


Technical parameter:

Model

VFS5000D

VFS5000B

VFS7300B

Bag size

(L)80-300mm

(W)80-200mm

(L)100-350mm

(W)100-250mm

(L)100-460mm

(W)100-350mm

Film width

Max.420mm

Max.520mm

Max.730mm

Film thickness

0.04-0.1mm

0.04-0.1mm

0.04-0.14mm

Packing speed

20-80bags/min

20-60bags/min

10-50bags/min

Air consumption

0.65Mpa, 0.4/min

0.65Mpa, 0.4/min

0.65Mpa, 0.6/min

Power supply

380V,50-60Hz

380V,50-60Hz

380V,50-60Hz

Power

3Kw

5.5Kw

6Kw

Dimension

L1140xW1250xH1550mm

L1200xW1580xH1650mm

L1400xW1780xH1920mm

Machine weight

450Kg

650Kg

850Kg
